微服务架构项目开发中,API接口都统一使用响应结构。
http状态码统一返回200,状态码根据结构体的code获取。
"code"
:
0
,
"message"
:
"success"
,
"data"
:
{
"name"
:
"kent"

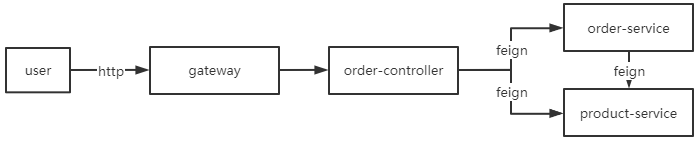

用户请求时,服务调用流程。
微服务架构中,在正常的情况下,返回的数据结构是按照响应结构体返回的,但服务调用发生异常时,却返回不了code。
例子,在order-service调用product-service,由于库存不足,抛出异常,返回的结果如下:
"timestamp"
:
"2020-08-11 13:25:03"
,
"status"
:
500
,
"error"
:
"Internal Server Error"
,
"exception"
:
"tech.xproject.common.core.exception.BusinessException"
,
"message"
:
"not enough stock"
,
"trace"
:
"tech.xproject.common.core.exception.BusinessException: not enough stock"
自定义
FeignErrorDecoder
、
DefaultErrorAttributes
、
BusinessException
对异常进行处理。
代码位置:service-api
package tech.xproject.order.config;
import com.alibaba.fastjson.JSON;
import feign.FeignException;
import feign.Response;
import feign.RetryableException;
import feign.codec.ErrorDecoder;
import lombok.extern.slf4j.Slf4j;
import org.springframework.context.annotation.Configuration;
import tech.xproject.common.core.entity.ExceptionInfo;
import tech.xproject.common.core.enums.ResultCodeEnum;
import tech.xproject.common.core.exception.BusinessException;
import java.nio.ByteBuffer;
import java.nio.charset.StandardCharsets;
import java.util.Optional;
* @author kent
@Slf4j
@Configuration
public class FeignErrorDecoder extends ErrorDecoder.Default {
@Override
public Exception decode(String methodKey, Response response) {
Exception exception = super.decode(methodKey, response);
if (exception instanceof RetryableException) {
return exception;
try {
if (exception instanceof FeignException && ((FeignException) exception).responseBody().isPresent()) {
ByteBuffer responseBody = ((FeignException) exception).responseBody().get();
String bodyText = StandardCharsets.UTF_8.newDecoder().decode(responseBody.asReadOnlyBuffer()).toString();
ExceptionInfo exceptionInfo = JSON.parseObject(bodyText, ExceptionInfo.class);
Integer code = Optional.ofNullable(exceptionInfo.getCode()).orElse(ResultCodeEnum.ERROR.getCode());
String message = Optional.ofNullable(exceptionInfo.getMessage()).orElse(ResultCodeEnum.ERROR.getMessage());
return new BusinessException(code, message);
} catch (Exception ex) {
log.error(ex.getMessage(), ex);
return exception;
代码位置:service-api
@FeignClient(name = ServiceNameConstant.ORDER_SERVICE, configuration = {FeignErrorDecoder.class})
完整代码示例
package tech.xproject.order.feign;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import tech.xproject.common.core.constant.ServiceNameConstant;
import tech.xproject.order.config.FeignErrorDecoder;
import tech.xproject.order.pojo.dto.CreateOrderReqDTO;
import tech.xproject.order.pojo.entity.Order;
* @author kent
@FeignClient(name = ServiceNameConstant.ORDER_SERVICE, configuration = {FeignErrorDecoder.class})
public interface RemoteOrderService {
* 创建订单
* @param createOrderReqDTO createOrderReqDTO
* @return Order
@PostMapping
("/order/create")
Order create(@RequestBody CreateOrderReqDTO createOrderReqDTO);
代码位置:service
若不自定义DefaultErrorAttributes,在返回时并不会带上code,需要将自定义的参数加入返回的对象中
package tech.xproject.product.handler;
import org.springframework.boot.web.servlet.error.DefaultErrorAttributes;
import org.springframework.context.annotation.Primary;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.WebRequest;
import tech.xproject.common.core.exception.BusinessException;
import java.util.Map;
* @author kent
@Component
@Primary
public class CustomErrorAttributes extends DefaultErrorAttributes {
@Override
public Map<String, Object> getErrorAttributes(WebRequest webRequest, boolean includeStackTrace) {
Map<String, Object> errorAttributes = super.getErrorAttributes(webRequest, includeStackTrace);
Throwable error = this.getError(webRequest);
if (error instanceof BusinessException) {
errorAttributes.put("code", ((BusinessException) error).getCode());
return errorAttributes;
代码位置:web
package tech.xproject.web.manager.handler;
import feign.FeignException;
import lombok.extern.slf4j.Slf4j;
import org.springframework.validation.BindException;
import org.springframework.validation.FieldError;
import org.springframework.web.bind.MethodArgumentNotValidException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.bind.annotation.RestControllerAdvice;
import tech.xproject.common.core.entity.R;
import tech.xproject.common.core.enums.ResultCodeEnum;
import tech.xproject.common.core.exception.BusinessException;
import java.util.List;
* @author kent
@Slf4j
@RestControllerAdvice
public class WebGlobalExceptionHandler {
@ExceptionHandler({FeignException.class})
@ResponseBody
public R<?> feignExceptionHandler(FeignException exception) {
log.error(exception.getMessage(), exception);
return R.error(exception.getMessage());
@ExceptionHandler({RuntimeException.class})
@ResponseBody
public R<?> runtimeExceptionHandler(RuntimeException exception) {
log.error(exception.getMessage(), exception);
return R.error(exception.getMessage());
@ExceptionHandler({Exception.class})
@ResponseBody
public R<?> exceptionHandler(Exception exception) {
log.error(exception.getMessage(), exception);
return R.error(exception.getMessage());
@ExceptionHandler({BusinessException.class})
public R<?> businessExceptionHandler(BusinessException exception) {
log.error(exception.getMessage(), exception);
return R.error(exception.getCode(), exception.getMessage());
@ExceptionHandler({BindException.class})
@ResponseBody
public R<?> bindExceptionHandler(BindException exception) {
List<FieldError> fieldErrors = exception.getBindingResult().getFieldErrors();
String errorMessage = fieldErrors.get(0).getDefaultMessage();
log.error(errorMessage, exception);
return R.
error(ResultCodeEnum.ERROR_PARAMETER.getCode(), errorMessage);
@ExceptionHandler({MethodArgumentNotValidException.class})
public R<?> validateExceptionHandler(MethodArgumentNotValidException exception) {
List<FieldError> fieldErrors = exception.getBindingResult().getFieldErrors();
String errorMessage = fieldErrors.get(0).getDefaultMessage();
log.error(errorMessage, exception);
return R.error(ResultCodeEnum.ERROR_PARAMETER.getCode(), errorMessage);
代码位置:gateway
@Bean
@Order(Ordered.HIGHEST_PRECEDENCE)
public ErrorWebExceptionHandler errorWebExceptionHandler(ErrorAttributes errorAttributes) {
JsonExceptionHandler exceptionHandler = new JsonExceptionHandler(errorAttributes,
this.resourceProperties, this.serverProperties.getError(), this.applicationContext);
exceptionHandler.setViewResolvers(this.viewResolvers);
exceptionHandler.setMessageWriters(this.serverCodecConfigurer.getWriters());
exceptionHandler.setMessageReaders(this.serverCodecConfigurer.getReaders());
return exceptionHandler;
完整代码示例
package tech.xproject.gateway.config;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.boot.autoconfigure.web.ResourceProperties;
import org.springframework.boot.autoconfigure.web.ServerProperties;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.boot.web.reactive.error.ErrorAttributes;
import org.springframework.boot.web.reactive.error.ErrorWebExceptionHandler;
import org.springframework.context.ApplicationContext;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.http.codec.ServerCodecConfigurer;
import org.springframework.web.reactive.result.view.ViewResolver;
import tech.xproject.gateway.handler.JsonExceptionHandler;
import java.util.Collections;
import java.util.List;
* @author kent
@Configuration
@EnableConfigurationProperties({ServerProperties.class, ResourceProperties.class})
public class ErrorHandlerConfiguration {
private final ServerProperties serverProperties;
private final ApplicationContext applicationContext;
private final ResourceProperties resourceProperties;
private final List<ViewResolver> viewResolvers;
private final ServerCodecConfigurer serverCodecConfigurer;
public ErrorHandlerConfiguration(ServerProperties serverProperties, ResourceProperties resourceProperties,
ObjectProvider<List<ViewResolver>> viewResolversProvider, ServerCodecConfigurer serverCodecConfigurer,
ApplicationContext applicationContext) {
this.serverProperties = serverProperties;
this.applicationContext = applicationContext;
this.resourceProperties = resourceProperties;
this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
this.serverCodecConfigurer = serverCodecConfigurer;
@Bean
@Order(Ordered.HIGHEST_PRECEDENCE)
public ErrorWebExceptionHandler errorWebExceptionHandler(ErrorAttributes errorAttributes) {
JsonExceptionHandler exceptionHandler = new JsonExceptionHandler(errorAttributes,
this.resourceProperties, this.serverProperties.getError(), this.applicationContext);
exceptionHandler.setViewResolvers(this.viewResolvers);
exceptionHandler.setMessageWriters(this.serverCodecConfigurer.getWriters());
exceptionHandler.setMessageReaders(this.serverCodecConfigurer.getReaders());
return exceptionHandler;
代码位置:gateway
使用自定义的结构体返回,code、message、data
* get error attributes
@Override
protected Map<String, Object> getErrorAttributes(ServerRequest request, boolean includeStackTrace) {
Throwable error = super.getError(request);
String exMessage = error != null ? error.getMessage() : ResultCodeEnum.ERROR.getMessage();
String message = String.format("request error [%s %s],exception:%s", request.methodName(), request.uri(), exMessage);
Map<String, Object> map = new HashMap<>(3);
map.put("code", ResultCodeEnum.ERROR.getCode());
map.put("message", message);
map.put("data", null);
return map;
重写getHttpStatus方法,返回http状态码200
* response http code 200
* the error code need use the code in response content
* @param errorAttributes
@Override
protected int getHttpStatus(Map<String, Object> errorAttributes) {
return HttpStatus.OK.value();
完整代码示例
package tech.xproject.gateway.handler;
import org.springframework.boot.autoconfigure.web.ErrorProperties;
import org.springframework.boot.autoconfigure.web.ResourceProperties;
import org.springframework.boot.autoconfigure.web.reactive.error.DefaultErrorWebExceptionHandler;
import org.springframework.boot.web.reactive.error.ErrorAttributes;
import org.springframework.context.ApplicationContext;
import org.springframework.http.HttpStatus;
import org.springframework.web.reactive.function.server.*;
import tech.xproject.common.core.enums.ResultCodeEnum;
import java.util.HashMap;
import java.util.Map;
* @author kent
public class JsonExceptionHandler extends DefaultErrorWebExceptionHandler {
public JsonExceptionHandler(ErrorAttributes errorAttributes, ResourceProperties resourceProperties,
ErrorProperties errorProperties, ApplicationContext applicationContext) {
super(errorAttributes, resourceProperties, errorProperties, applicationContext);
* get error attributes
@Override
protected Map<String, Object> getErrorAttributes(ServerRequest request, boolean includeStackTrace) {
Throwable error = super.getError(request);
String exMessage = error != null ? error.getMessage() : ResultCodeEnum.ERROR.getMessage();
String message = String.format("request error [%s %s],exception:%s", request.methodName(), request.uri(), exMessage);
Map<String, Object> map = new HashMap<>(3);
map.put("code", ResultCodeEnum.ERROR.getCode());
map.put("message", message);
map.put("data", null);
return map;
* render with json
* @param errorAttributes
@Override
protected RouterFunction<ServerResponse> getRoutingFunction(ErrorAttributes errorAttributes) {
return RouterFunctions.route(RequestPredicates.all(), this::renderErrorResponse);
* response http code 200
* the error code need use the code in response content
* @param errorAttributes
@Override
protected int getHttpStatus(Map<String, Object> errorAttributes) {
return HttpStatus.OK.value();
在网上查阅各类文章,始终没找到解决方案,只有各类的零散的解决方式,最后通过自己翻代码,断点调试,并结合相关的文章终于解决了。
使用文章跟代码解决方式记录下来,给有需要的人提供参考。
feign-custom-exception-code-demo
这时候feign的接收对象可以使用该对象。
现在接口都追求rest风格,接口在正常流程时会返回请求的数据,错误时会返回错误的描述信息。此时不同的情况下httpcode也不能统一是200
那么正常和异常的情况就...
当接口返回值interface的时候 如jpa的page Page<User>,feign调用报错
其它类似的错误 也可以利用这种方式 画葫芦
使用于jpa的page直接序列化/反序列化出现异常错误的问题。
当Jackson返回如下异常的时候 可以使用这种方式去修复 支持不修改任何代码 只新增
Can not construct instance of org.springframework.data.domain.Page: abstract types either need to be mapped to concrete types, have custom deserializer, or contain additional type information
<dependency>
<groupI
ErrorDecoder-错误解码器的自定义
Feign 的默认错误处理程序ErrorDecoder.default总是抛出FeignException。
现在,这种行为并不总是最有用的。因此,要自定义抛出的异常,我们可以使用*CustomErrorDecoder*:
public class CustomErrorDecoder implements ErrorDecoder {
@Override
public Exception decode(String methodKey, Res
如果不使用异常,那么就必须在调用点检查特定的错误,并在程序的很多地方去处理它;如果使用异常,那么就不必在方法调用处进行检查,因为异常机制将保证能够捕获这个错误。因此...
上篇文章介绍了Feign的编码器Encoder,本篇继续了解它的解码器`Decoder`,以及错误解码器`ErrorDecoder`。
编码器作用于Request,那么解码器作用于Response,用于解析Http请求的响应,提取有用信息数据。
在微服务开发当中使用了Feign进行服务之间的调用,在正常情况下是可以以响应的格式返回对象数据,但是一旦发生feign客户端的异常错误,每个下游系统的异常返回方式不同,需要编写大量的错误处理代码来适应不同的服务,而且错误处理代码混在业务代码中,违反单一职责原则和最少知识原则。面临着维护难度上升的风险。需要一个方案来规避这些后期维护成本上升的风险。
为了防止项目腐化,避免错误处理代码与业务代码强耦合。导致后期的维护成本的上升和陷入逻辑迷宫的风险。保证灵活性和高可维护性
拆分错误处理代码和业务
近期在使用Feign开发调用其他系统的微服务接口的时候遇到了需求,需要把原来系统抛出来的状态码和异常捕捉以及原样抛出。由于使用了Hystrix熔断,发现Feign返回的异常和原来抛出的不一致,故在此做个解决记录
解决方案:
一、自定义全局异常配置
@Configuration
public class FeignGlobalConfig {
@Bean
ErrorDecoder responseErrorDecoder() {
// 调用异常处理
return new Defa.
